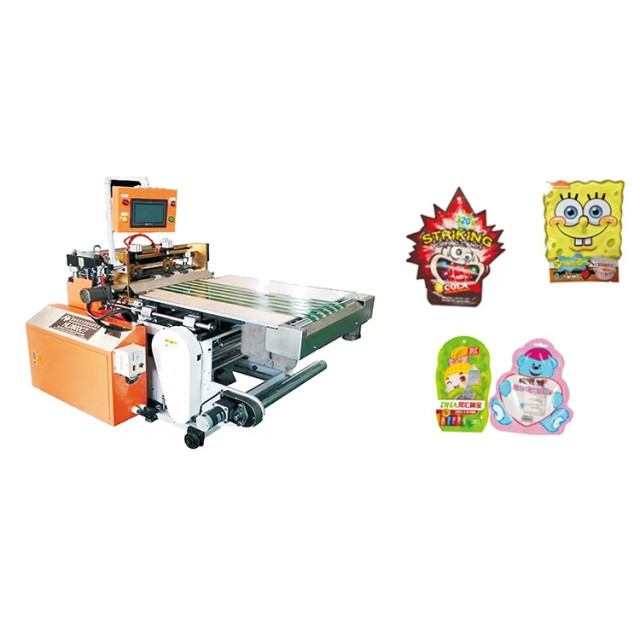

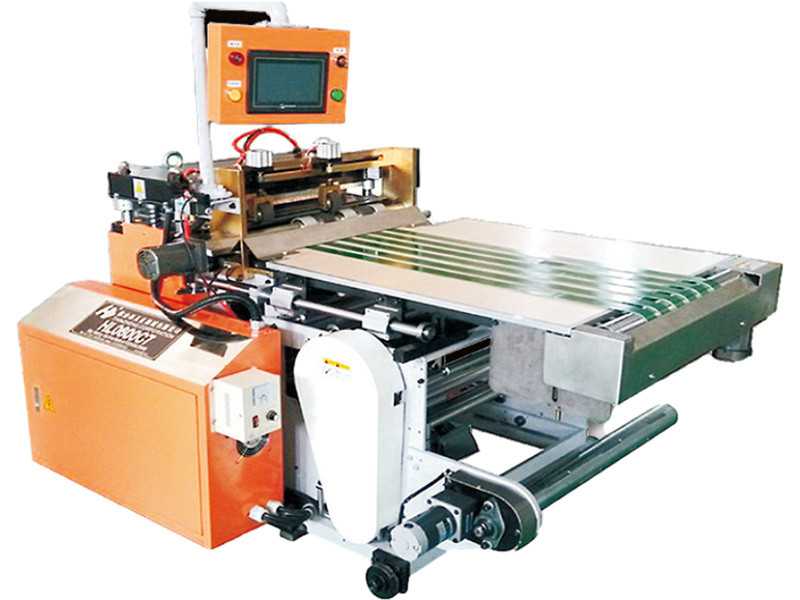

Three-side sealing bag with rounded corners die-cutting, special-shaped bag connected to bag making machine, special-shaped three-side sealing bag, special-shaped stand-up bag, special-shaped zipper bag, square bottom bag.
***Edge width: 1.5-3mm around the plate, 3-5mm wide on the left and right. A small amount of edge can achieve stable production.
*** Anti-pressure hand, anti-involvement safety guarantee, various abnormal alarm functions
***Edge material automatic winding device
***Precise machine, ultra-quiet design
***Stable and durable
***New quick loading mode
***Add double security
***The use of the equipment can adopt the method of multi-column closing edge, single flash edge, and free edge method.
***Stainless steel panel packaging, the machine is beautiful and always new!
***Non-standard configuration 320mm bottom plate, die-cutting maximum width 310mm, length 560mm.
|
Installation method: suitable for each brand of bag making machine connection machine specifications:1.7*1.5*1.4mWeight about 1.2T |
|||
|
Exotic cutter ARP configuration: |
|||
|
structure |
Configuring parts |
model |
quantity |
|
Transfer part |
Power servo motor |
2KW |
1set |
|
reduction box |
|
1 set |
|
|
Stripping the motor |
120w |
1 set |
|
|
Main control |
Air compressed part |
0.6pca |
1 set |
|
source |
380V 60Hz |
1 set |
|
|
retrieve |
frequency transformer |
0.75KW |
1 set |
|
|
tension control |
|
1 set |
|
control |
PLC |
|
1 set |
|
indicator |
10.5寸 |
1 set |
|
|
proximity switch |
|
1 piece |
|
|
Free paper core reel |
|
1 piece |
|
|
|
Paid motor |
60W |
1 piece |
|
|
Side material volume |
400w |
1 piece |

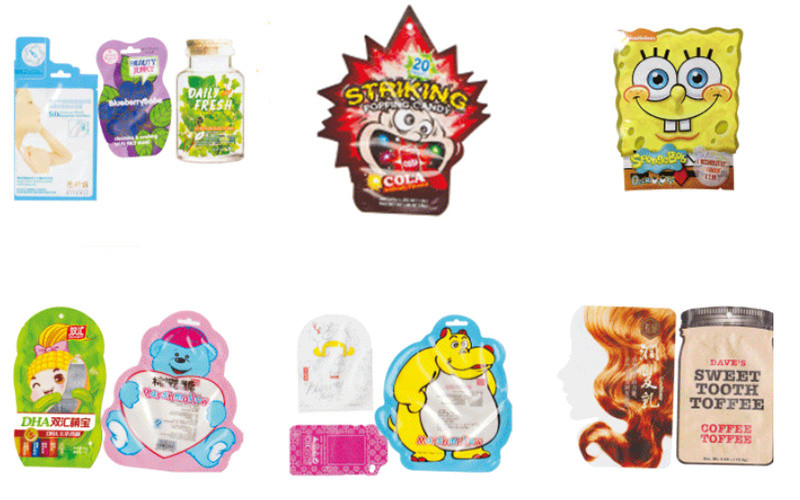

Three-side sealing bag with rounded corners die-cutting, special-shaped bag connected to bag making machine, special-shaped three-side sealing bag, special-shaped stand-up bag, special-shaped zipper bag, square bottom bag.
With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing three side sealing pouch from various plastic-plastic, paper-plastic, paper-paper laminated material.
This machine is suitable for producing two-layer or multi-layer three side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
This flat bottom pouch making machine is available to make four side seal pouch & flat bottom pouch(zipper is both optional). These pouch can be used in food industry to pack solid liquid and etc.Most materials like laminated film and plastic film with paper are available.
