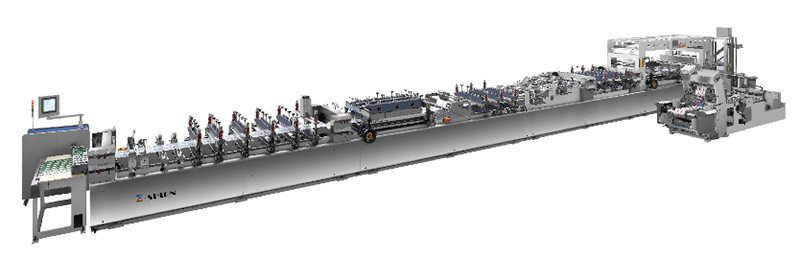

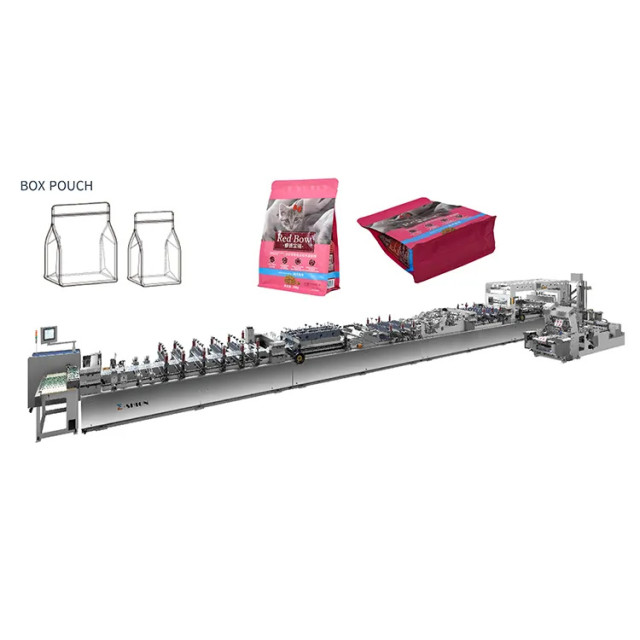

This flat bottom pouch making machine is available to make four side seal pouch & flat bottom pouch(zipper is both optional). These pouch can be used in food industry to pack solid liquid and etc.Most materials like laminated film and plastic film with paper are available.
Automatic Synchronization and tensioncontrol system , PLC automatic routing,operation and control of various logicstate, setting
barrier impaired diagnosticinformation systems and machinery management system . nureeling pneumaticshaft. Horizontal
feeding material by servomotor to ensure the accurate feeding length.Horizontal material hot press by type of mechanical
movement, to avoid the instability resulting vapor action,short life ofthe disadvantages. feeding quickly and smoothly.Sample bags
aesthetic appearance. This specialbag production equipment is our company main products.

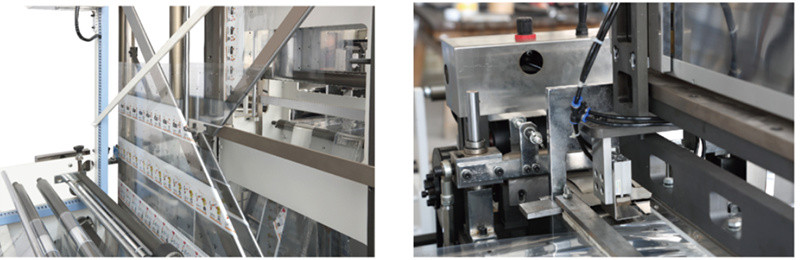

1. Air cylinder automatic loading device
2. Hangle hole puncher
3. slider zipper application
4. air hole punch
|
Type |
ES-B700 |
|
Equipment attitude |
700/800/1000mm |
|
Reel specifications |
1350*Ф700 mm.Automatic feeding |
|
Crew Reel Size |
150*Ф500 mm |
|

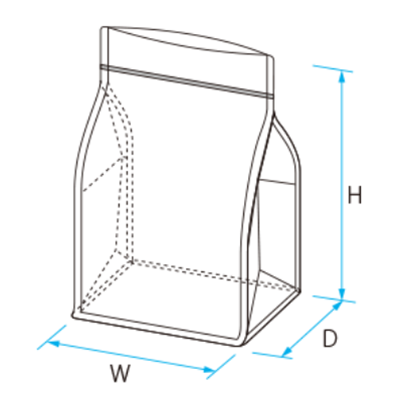

Bag width |
80-400mm |
|
Bag height |
100-600 mm |
|
Organ depth |
20-70mm |
|
Bagging speed |
50-80knives / minute |
|
Release length |
24 m / min |
|
Bag roll |
2rolls |
|
Main motor |
5.0KW(Japan Panasonic) |
|
Traction motor |
(1 group): 1.5KW,1.5KW,1.5KW,2KW |
|
Organ control the bottom of the servo motor |
1.5KW |
|
Original film and organ feeding motor |
(1 group). 0.75KW, 0.4KW |
|
Tlemperature control |
36 groups |
|
Voltage |
220v/ 380V / 440V,3-phase,50/60Hz |
|
Total power |
72KW |
|
Total weight |
7500KG |
|
Body Dimensions(L*W*H) |
19000*2500*2200mm |
|
Function |
(double out with a slider zipper bag, double out of the square ( flat ) bottom with out zipper bag.double out of the four pressure sideband slider zipper bag) |
|
Material |
BOPP.PPPE.
Nylon.Aluminized, kraft paper and other composite film)
|
|
Control system |
(PLC control,touch screen display, front and rear segmented control) |
|
lncreased purchase function |
(can be given a slider zipper, easy tear zipper, tape, easy to bond zipper and other functions) |
With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing three side sealing pouch from various plastic-plastic, paper-plastic, paper-paper laminated material.
Three-side sealing bag with rounded corners die-cutting, special-shaped bag connected to bag making machine, special-shaped three-side sealing bag, special-shaped stand-up bag, special-shaped zipper bag, square bottom bag.
This flat bottom pouch making machine is available to make four side seal pouch & flat bottom pouch(zipper is both optional). These pouch can be used in food industry to pack solid liquid and etc.Most materials like laminated film and plastic film with paper are available.
This machine is suitable for producing two-layer or multi-layer three side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
